MQTT Sparkplug B explained

What Sparkplug adds to MQTT

Plain MQTT leaves topic names and payloads up to you. That works inside one project and falls apart across vendors. Sparkplug, maintained by the Eclipse Foundation, standardises three things:

• A topic namespace, so every message says which group, edge node and device it belongs to and what kind of message it is.
• A payload, a protobuf message holding a timestamp, a sequence number and a list of typed metrics.
• State management: devices announce everything they publish when they come online, and the broker tells everyone when they go offline.

Version 3.0 of the specification is also published as ISO/IEC 20237. The reference implementations live in the Eclipse Tahu project.

The spBv1.0 topic namespace

Every Sparkplug B topic follows the same pattern:

spBv1.0/{group_id}/{message_type}/{edge_node_id}[/{device_id}]

spBv1.0/EnergyCo/NBIRTH/substation-7
spBv1.0/EnergyCo/DDATA/substation-7/meter-01
spBv1.0/STATE/scada-primary

A group is a logical collection of edge nodes, often a site or a line. An edge node is the gateway or PLC that holds the MQTT connection. A device is something behind the edge node, such as a meter or a drive, that has no MQTT connection of its own. Subscribing to spBv1.0/# gets the whole namespace.

Sparkplug message types

Type	Sent by	Meaning
NBIRTH	Edge node	Node birth certificate. Every metric the node will publish, with names, aliases, datatypes and current values
DBIRTH	Edge node	Device birth certificate. The same, for one device behind the node
NDATA, DDATA	Edge node	Changed values for the node or a device
NDEATH	Edge node's MQTT Will, usually delivered by the broker	The edge node has gone offline
DDEATH	Edge node	A device behind the node has gone offline
NCMD, DCMD	Host application	Commands to a node or device, such as a rebirth request or a setpoint write
STATE	Host application	Whether a host application, such as a SCADA system, is online

Births, deaths and bdSeq

When an edge node connects, it registers an NDEATH message as its MQTT Last Will, then publishes an NBIRTH and a DBIRTH for each device. If the node drops off the network, the broker publishes the NDEATH on its behalf once it notices, on a socket error or when the keep-alive runs out, so every subscriber learns the node is offline without polling it.

Both the NBIRTH and the NDEATH carry a metric called bdSeq, the birth/death sequence number. It goes up by one each time the node connects. A host uses it to match a death to the right birth, so a late NDEATH from an old session cannot mark a freshly reconnected node offline.

Aliases: why data messages have no names

Metric names such as Line 1/Filler/Motor/Current are long, and sending them with every value wastes bandwidth. So the birth maps each name to a numeric alias, and data messages can carry just the alias and the value:

NBIRTH  metrics: [{ name: "Volts/L1", alias: 3, datatype: Float, value: 239.9 }, ...]
NDATA   metrics: [{ alias: 3, value: 240.2 }]

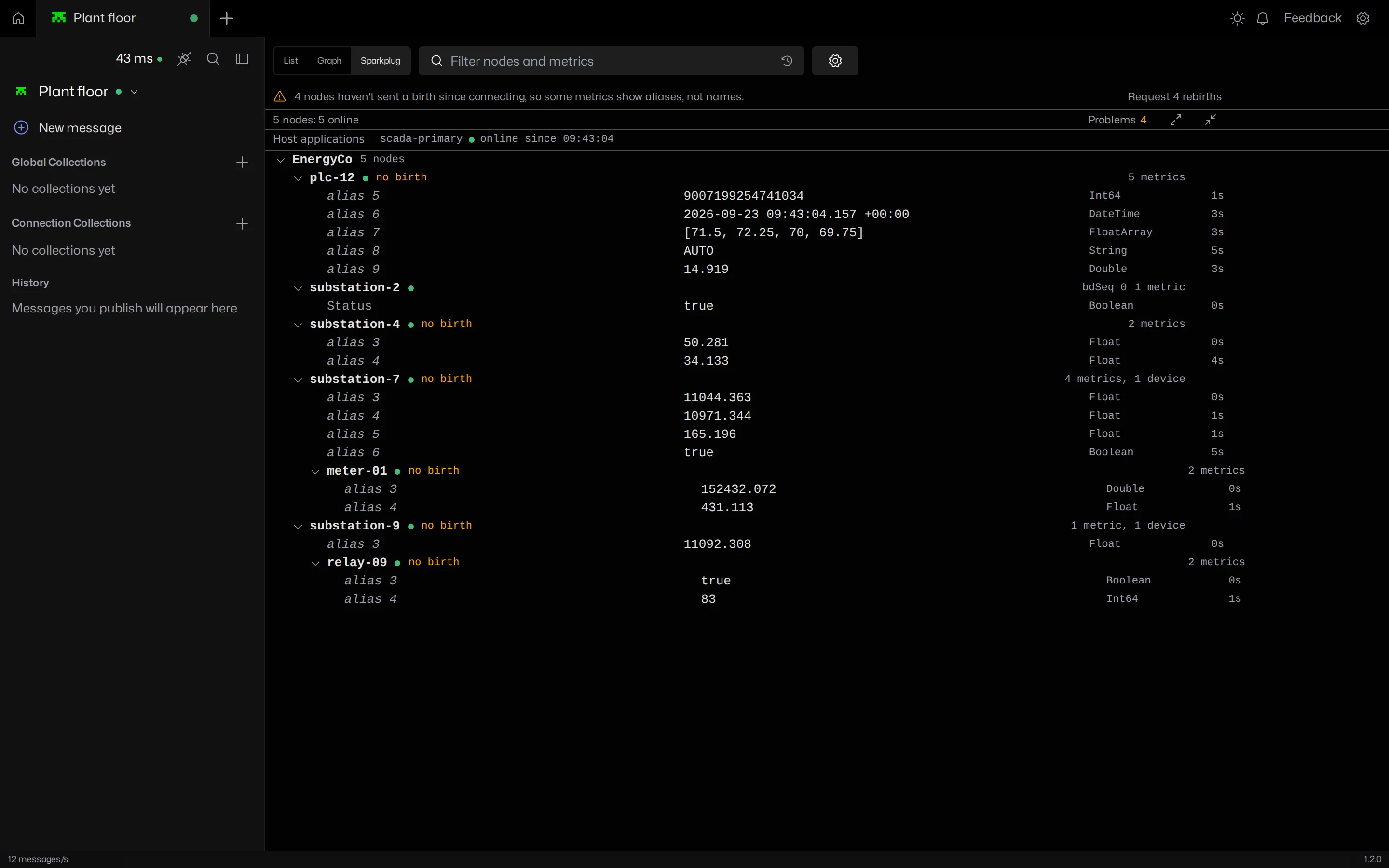

To read the NDATA you need the NBIRTH. A client that connected after the birth, or that decodes each message on its own, only ever sees alias 3. An alias must be unique across the edge node's whole set of metrics, its devices included. A new birth replaces the whole alias table.

MQTT Viewer's Sparkplug view keeps every birth for the session and fills the names back in, in the tree and in the decoded payload.

Sequence numbers

Every message from an edge node after its NBIRTH, except the NDEATH, carries a seq number that counts from 0 to 255 and wraps. The NBIRTH itself carries 0. Node and device messages share one counter per node. A jump in the sequence means messages were lost or arrived out of order, and a strict host application will request a rebirth to resynchronise.

Rebirth requests

A host that missed a birth, or saw a seq gap, asks the node to start over by publishing an NCMD with one Boolean metric:

topic:   spBv1.0/EnergyCo/NCMD/substation-7
metric:  { name: "Node Control/Rebirth", datatype: Boolean, value: true }

The node answers with a fresh NBIRTH and a DBIRTH for each device. Every subscriber sees the new births, not only the one that asked.

Host applications and STATE

A host application, typically a SCADA or MES system, publishes its own state as a retained message. In Sparkplug 3.0 the topic is spBv1.0/STATE/{host_id} and the payload is JSON with online and timestamp. Earlier versions used STATE/{host_id} with a plain ONLINE or OFFLINE string. Edge nodes can be configured to wait for their primary host before publishing, so data is not lost while the host is down.

Metric datatypes

Each metric declares a datatype in the birth: signed and unsigned integers from 8 to 64 bits, Float, Double, Boolean, String, Text, UUID, DateTime, Bytes and File, plus DataSet for tables and Template for user defined types. Sparkplug 3.0 adds array types such as FloatArray and BooleanArray. Metrics carry flags for null, historical and transient values, and a property set: Quality is defined by the specification, and many platforms add engineering units by convention.

Common Sparkplug faults

Symptom	Usual cause
Metrics show as aliases or numbers	The client connected after the birth. Request a rebirth
A node births over and over	Two edge nodes share an MQTT client ID and keep knocking each other off, or the host and node disagree and request rebirths in a loop
Sequence gaps	Messages lost on a flaky link, QoS 0 under load, or two publishers on the same node ID
Node stays offline after reconnecting	A late NDEATH from the old session that the host does not check against bdSeq
A dead node looks online to new subscribers	A retained NBIRTH, which the specification forbids
Nothing arrives at all	Edge node waiting for its primary host's STATE, or ACLs blocking spBv1.0/#

MQTT Viewer flags seq gaps and rebirth storms on the affected node, shows which nodes are offline and since when, and lists host applications from their STATE messages.

Watching a Sparkplug network

Any MQTT client can subscribe to spBv1.0/#, but a plain client shows binary protobuf. To read it you need a client that decodes Sparkplug and, to see names rather than aliases, one that keeps the births.

MQTT Viewer is free and does both. It subscribes and watches without acting as a host application, so it is safe to point at a production broker next to Ignition or another SCADA system. It only publishes when you ask it to request a rebirth.
